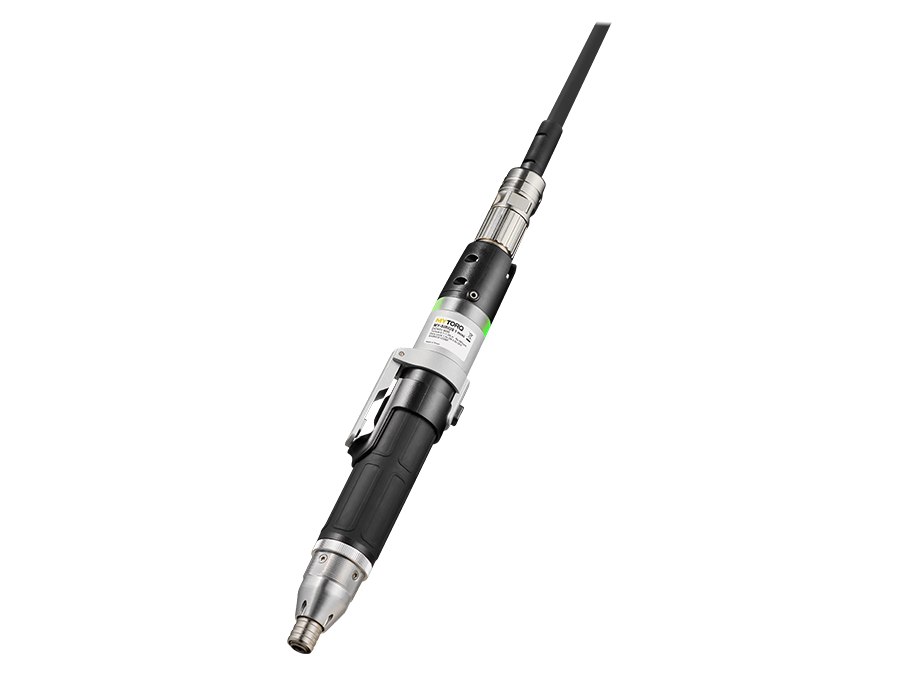

MY-Sirius 1 / 2F / 3 mini

Products / Industry 4.0 Transducerized Screwdriver

Features
Specifications

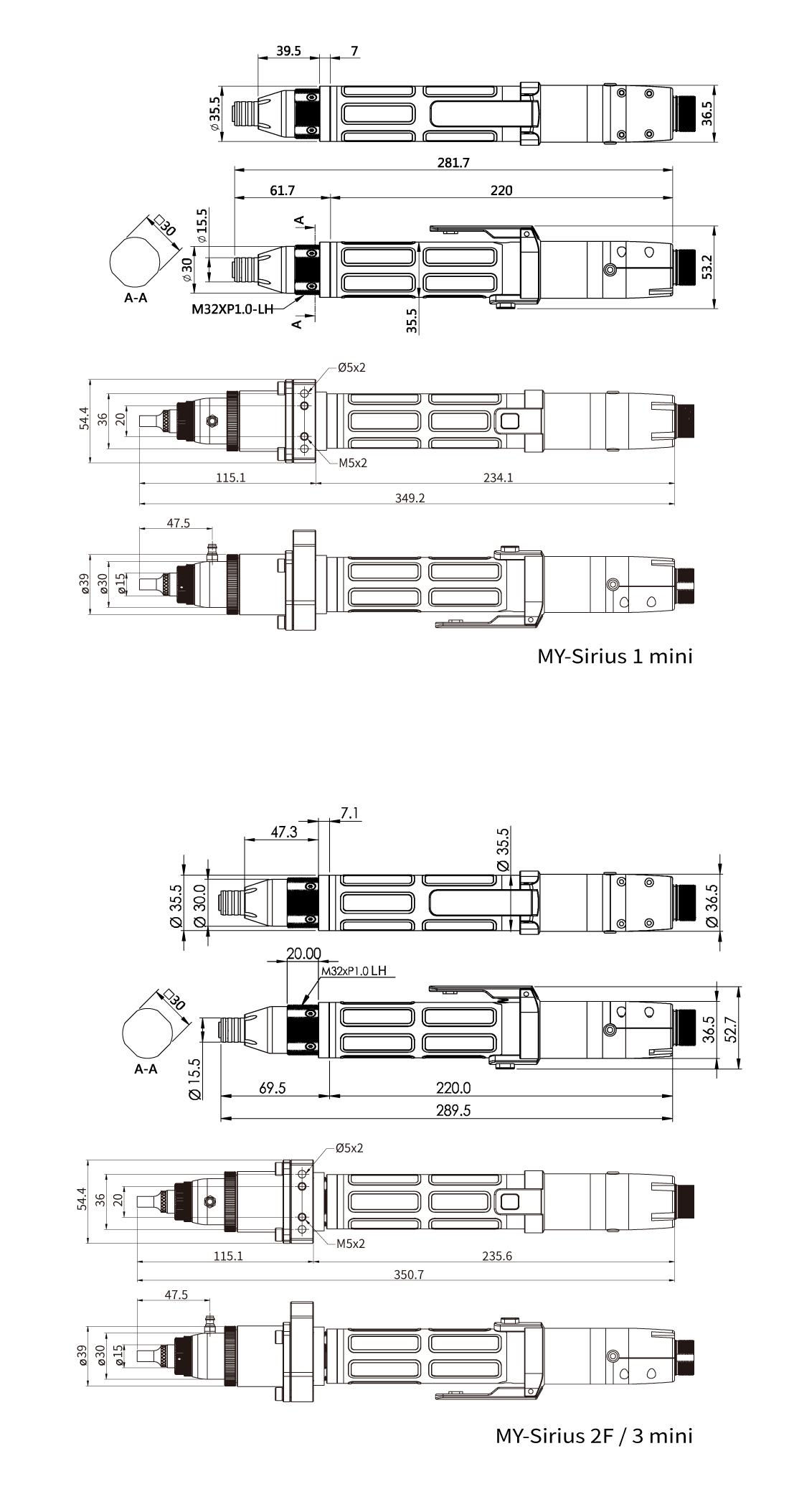

External Dimension
Torque Range Reference Chart

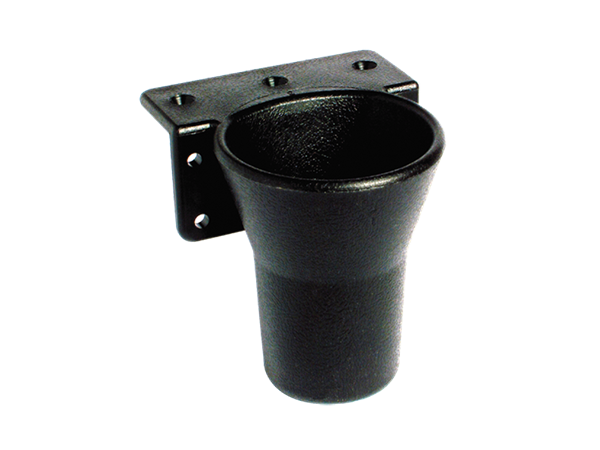

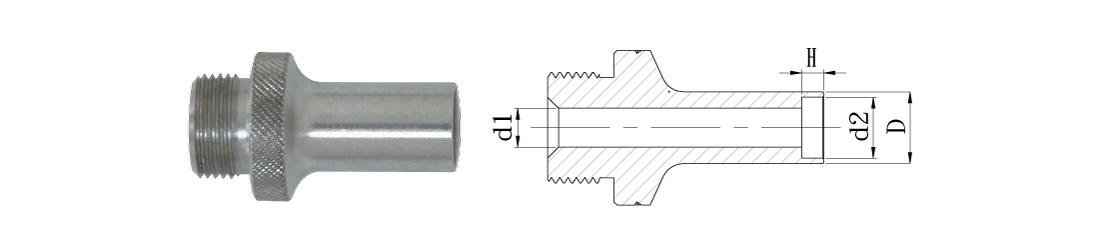

Accessoroes
Download

Features

● Compact and ergonomic design for long time operation without hand fatigue
● Rubberized grip provides a non-slip surface to secure hold, absorbs shock and vibration
● 3 tool start methods: lever start, push start and lever + push start
● 3 LED illumination mode: On / Off / On when the tool starts
● Tightening status LED and buzzer alert
● Transducerized DC torque & angle control tightening system
● High-resolution encoder, angle control 1° - 30600° (30600° is approx. 85 turns)
● < 1% tolerance, precision & accurate torque transducer
● Beginner-friendly downshift and threshold settings in normal mode
● 8 available rundown steps to customize your screw rundown process

Specifications

Model	Input voltage	Torque (N.m)	Torque (kgf.cm)	Torque (Lbf.in)	Free Speed (r.p.m)	Power Consumption	Weight (g)	Length (mm)	Applicable controller	Bit Type
MY-Sirius 1 mini	DC40	0.1~1	1.02~10.2	0.88~8.85	980~60	90W	644	282	MY-Sirius	B 9.5、 C、 D
MY-Sirius 2F mini	DC40	0.3 ~2.4	3.06~24.48	2.66~21.24	2000~140	90W	692	291	MY-Sirius	B、 B 9.5 、 D
MY-Sirius 3 mini	DC40	0.38~3	3.88~30.60	3.36~26.55	980~60	90W	718	291	MY-Sirius	B、 B 9.5 、 D
