Producto  /   Industry 4.0 Destornillador de control de corriente

MY-CURRENT Lite Series

Destornillador de control de corriente
Modelo
CONSULTA

CuotaMail
Imprimir

Especificaciones

Model Voltaje de entrada Par
(N.m)		 Par
(kgf.cm)		 Par
(Lbf.in)		 Precisión de par repetible (%) Velocidad libre (r.p.m) Peso
(g)		 Longitud
(mm)		 Mostrar
Controlador		 Tipo de
 bit
MY-CURRENT Lite 1.2 DC40V 0.3~1.2 3.06~12.24 2.66~10.62 ±5% 1000~100 1173 192x92x50 MY-CURRENT Lite B 9.5、D
MY-CURRENT Lite 2 DC40V 0.6~2 6.12~20.40 5.31~17.70 ±5% 1000~100 1173 192x92x50 MY-CURRENT Lite B 9.5、D
MY-CURRENT Lite 2.5 DC40V 0.5~2.5 5.1~25.5 4.43~22.13 ±5% 1000~100 1173 192x92x50 MY-CURRENT Lite B 9.5、D
MY-CURRENT Lite 3F DC40V 1~3 10.2~30.60 8.85~26.55 ±5% 1700~200 1173 192x92x50 MY-CURRENT Lite B 9.5、D
MY-CURRENT Lite 5 DC40V 1.5~5 15.30~51.00 13.28~44.25 ±5% 1000~100 1173 192x92x50 MY-CURRENT Lite B 9.5、D
MY-CURRENT Lite 7 DC40V 2~7 20.40~71.40 17.70~61.96 ±5% 800~100 1173 192x92x50 MY-CURRENT Lite B 9.5

Applicable Bit Type

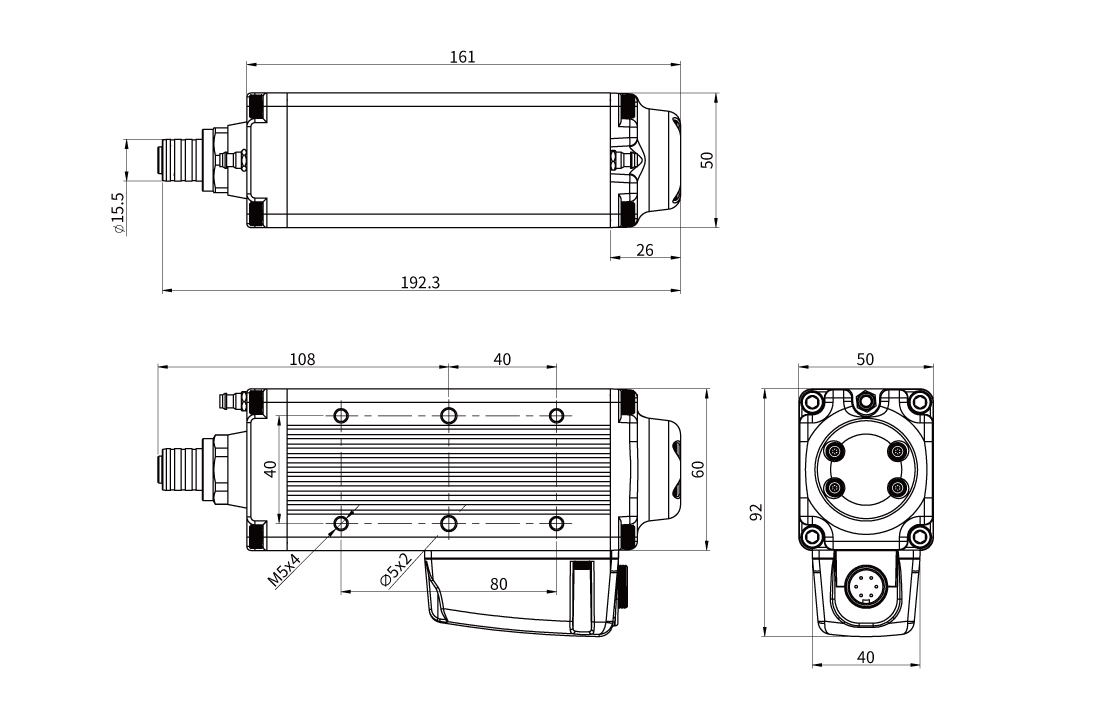

Dimension externa


Accesorios

MY-CURRENT Lite Destornillador transductor económico

Descargar

MY-Current Lite Series Catalog

MY-CURRENT Lite 1.2 / MY-CURRENT Lite 2 / MY-CURRENT Lite 2.5 / MY-CURRENT Lite 3F / MY-CURRENT Lite 5 / MY-CURRENT Lite 7 manual
