MYPC40-1500

Easy to set up
Save up to 5 programs
Use up to 5 programs in 1 sequence
Timer error proof system to avoid costly tightening error
Various I/O ports to connect to your PLC and automation equipment
Buzzer alert and NG lock functions to avoid operators passing defective workpiece to next station

Optional Plug Type

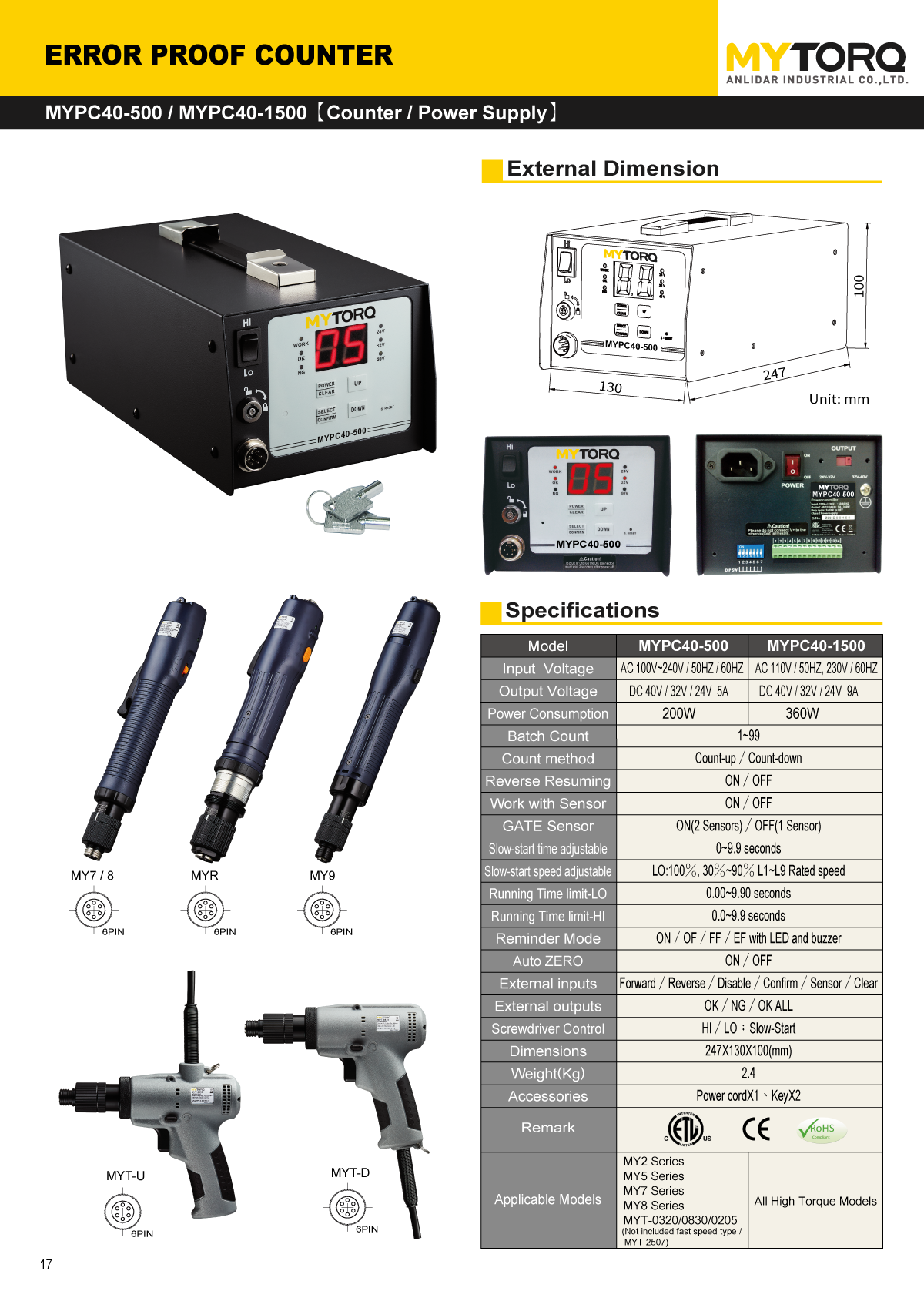

Model	MYPC40-1500
Input Voltage	AC110V/50HZ,230V/60HZ
Output Voltage	DC40V/32V/24V 9A
Power Consumption	360W
Count	1~99
Count method	Count-up／Count-down
Work with Sensor	ON/OFF
GATE Sensor	ON(2Sensors)/OFF(1Sensor)
Slow-start time adjustable	0~9.9 seconds
Slow-start speed adjustable	L0:100％,30％~90％ L1~L9 RATED SPEED
Running Time limit-LO	0.00~9.99 seconds
Running Time limit-HI	0.0~9.9 seconds
REMINDER MODE	ON／OF／FF／EF with LED and buzzer
Auto ZERO	ON/OFF
External inputs	Forward／Reverse／Disable／Confirm／Sensor／Clear
External outputs	OK/NG/OKALL
Screwdriver Control	HI/LO； Slow-Start

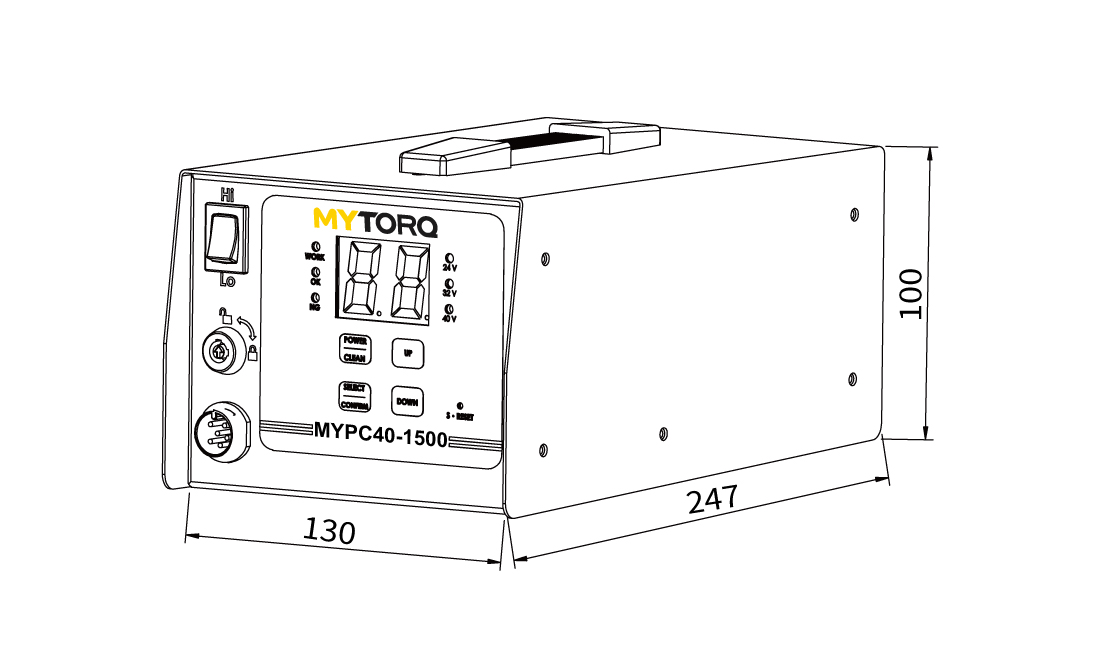

External dimensions(mm)	247X130X100(mm)
Weight(kg)	2.4
Applicable Models	All High Torque Models
