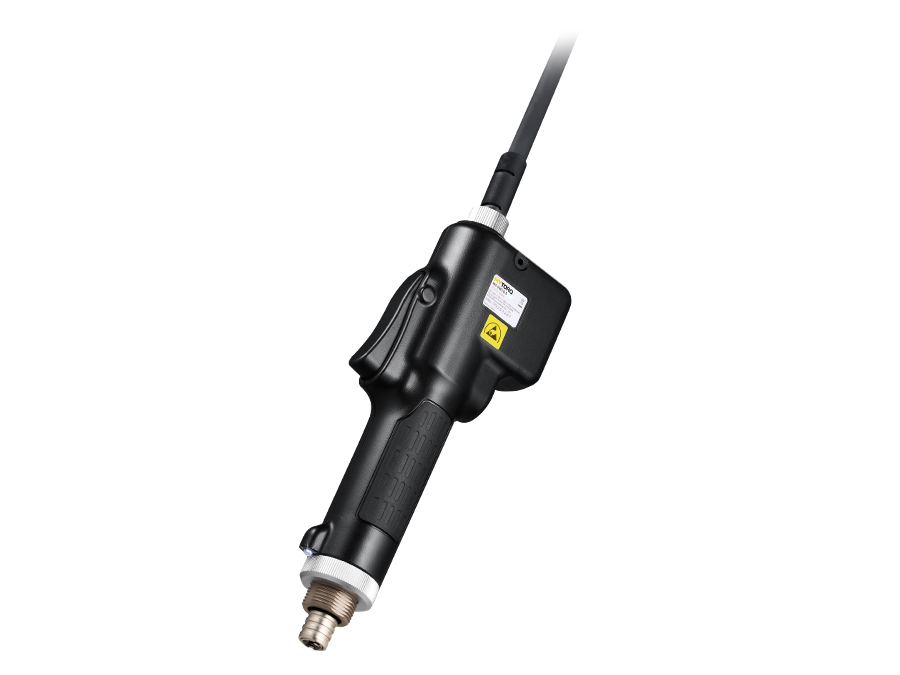

MY-EVO 0.3 / 0.6 / 1 micro

Products / Industry 4.0 Transducerized Screwdriver

Features
Specifications

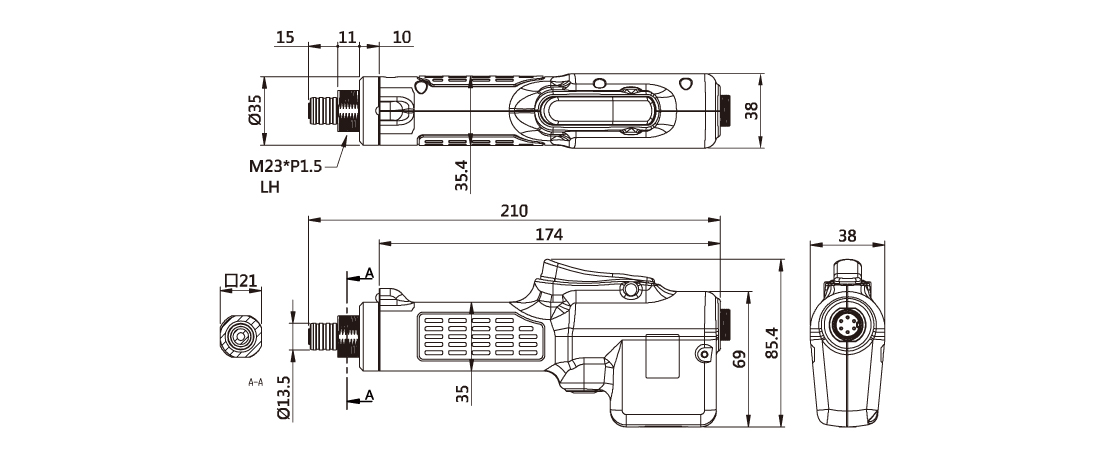

External Dimension
Torque Range Reference Chart

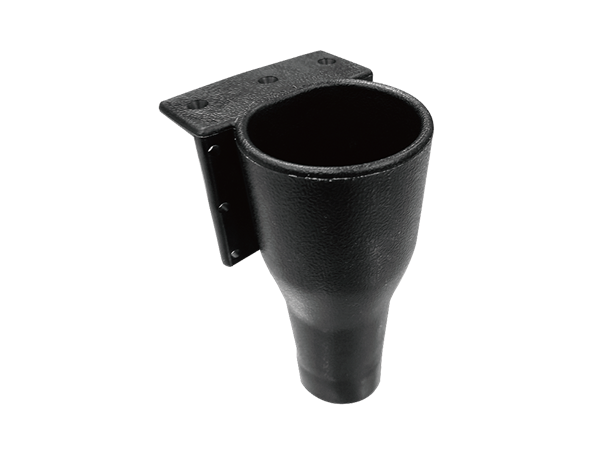

Accessoroes
Download

Features

● Compact and ergonomic design for long time operation without hand fatigue
● Rubberized grip provides a non-slip surface to secure hold, absorbs shock and vibration
● 4 tool start methods: lever start, push start, lever + push start and external start
● 4 LED illumination mode: On / Off / On when the tool starts / On when triggered
● Tightening status LED and buzzer alert
● Transducerized DC torque & angle control tightening system
● High-resolution encoder, angle control 1° - 30600° (30600° is approx. 85 turns)
● < 1% tolerance, precision & accurate torque transducer
● Beginner-friendly downshift and threshold settings in normal mode
● 5 available rundown steps to customize your screw rundown process

Specifications

Model	Input voltage	Torque (N.m)	Torque (kgf.cm)	Torque (Lbf.in)	Free Speed (r.p.m)	Power Consumption	Weight (g)	Length (mm)	Applicable controller	Bit Type
MY-EVO 0.3 micro	DC40	-	0.375~3	-	1000~20	40W	465	210	MY-EVO-mini	B 9.5、 C、C-HM、 D
MY-EVO 0.6 micro	DC40	-	0.75~6	-	1000~20	40W	465	210	MY-EVO-mini	B 9.5、 C、C-HM、 D
MY-EVO 1 micro	DC40	-	1.25~10	-	700~20	40W	465	210	MY-EVO-mini	B 9.5、 C、C-HM、 D
