Features

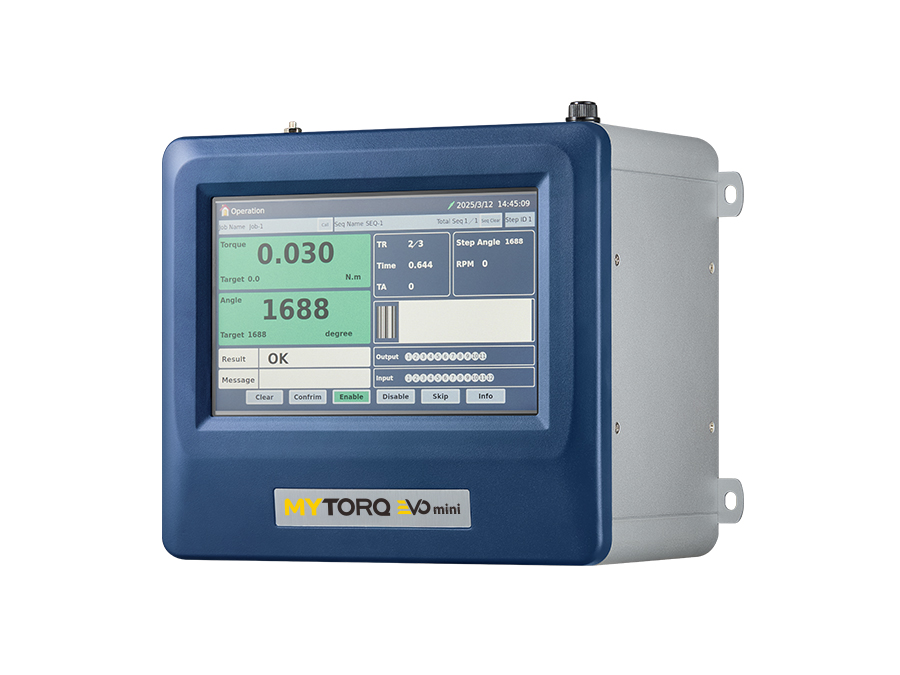

● Smart transducerized high precision torque & angle control tightening system for industry 4.0
● High-resolution encoder technology enables precise and strict control of screw tightening angle
● < 1% tolerance torque transducer, allows all fasteners to reach target torque with exceptional precision
● User friendly UI design with 7”color LCD touch screen
● Save up to 100 jobs
● Beginner-friendly downshift and threshold settings
● 5 available rundown steps to customize your screw rundown process
● Real-time torque & angle control + rundown monitor to achieve in-process tightening control & 0 defect assembly line
● Real-time data collection & rundown down graph
● Save up to 1 million tightening data
● Programmable 11 input & 11 output I/O
● Communication: Modbus RS485*1 & Ethernet RJ45*1
● Transfer controller settings via FTP/USB
Specifications
| Model |
MY-EVO mini |
| Input Voltage |
AC 115V / 230V |
| Input Frequence |
50 - 60Hz |
| Input Current |
6.3A |
| Output Voltage |
DC 40V |
| Output Current |
Max 9A |
| power consumption |
360W |
| External dimensions(mm) |
210*185*134 |
| Weight(g) |
3467 |
| Applicable Model |
MY-EVO Series |

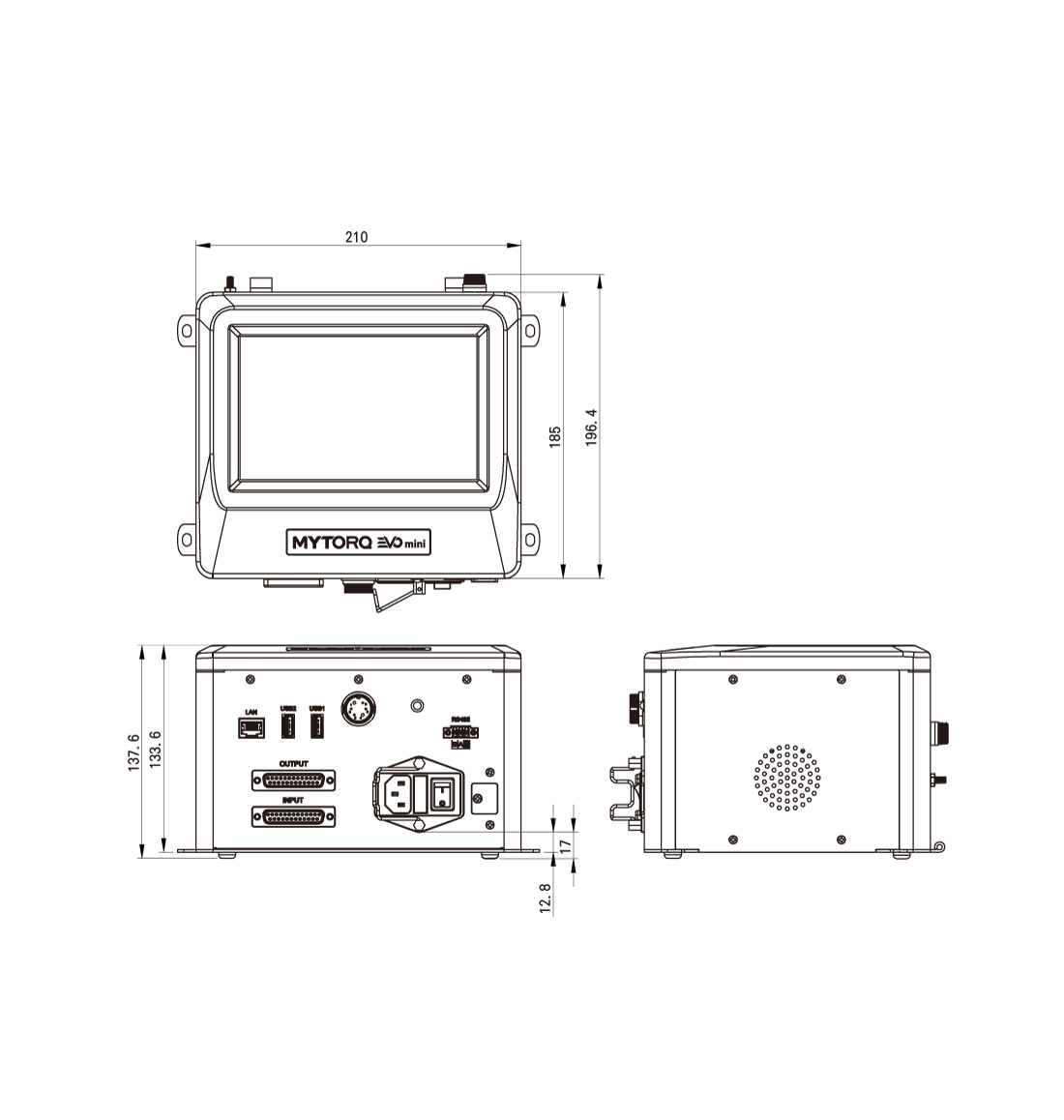

External Dimension
Torque Range Reference Chart
